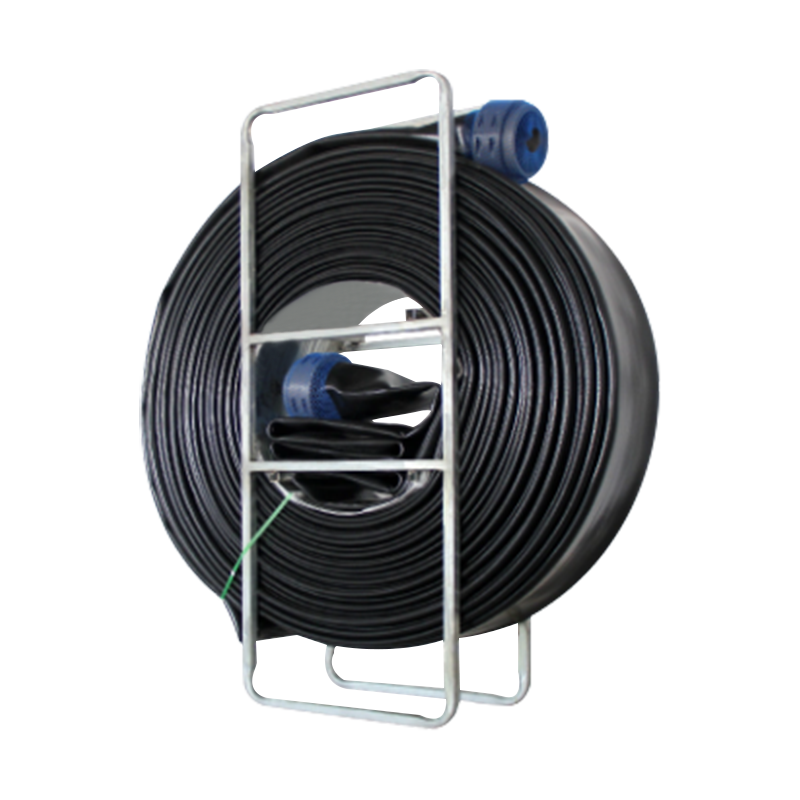

Through-the-weave TPU Layflat Fracturing Hose

• High-strength polyester filament as reinforcement, TPU as cover and lining, “through-the-weave ”process

•Resistant to abrasion, UV, oil, ozone, and chemicals

•Temperature range:-40℃ to 70℃

•Available in 100m,200m, or on customer request

+ Contact us

PREV：No previous article NEXT：No next article

Details
Specification

The Through-the-weave TPU lay flat Fracturing Hose is a specialized hose designed for high-performance applications, particularly in the oil and gas industry for fracturing operations. The outer and inner layers are made of TPU, known for its flexibility, abrasion resistance, and chemical resistance. High-strength polyester filament is used as reinforcement, providing the hose with tensile strength, and enhancing its ability to withstand high-pressure environments. The hose is engineered to function effectively within this wide temperature range, making it suitable for both cold and moderately hot environments.

Our Products Related products

Inner Diameter		Working Pressure		Burst pressure		Wall Thickness	Weight
inch	mm	psi	bar	psi	bar	mm	Kg/m
2	50	232	16	696	48	2.8	0.5
2	50	406	28	1218	84	3.4	0.66
2-1/2	65	232	16	696	48	3.0	0.76
3	80	232	16	696	48	3.1	0.78
3	80	406	28	1218	84	3.6	1.0
4	100	145	10	435	30	2.7	0.9
4	100	232	16	696	48	3.3	1.15
4	100	290	20	870	60	3.2-4.2	1.42
4	100	406	28	1218	84	4.8	1.76
4	100	580	40	1740	120	4.8-5.6	2.26
5	125	145	10	435	30	2.8	1.61
5	125	406	28	1218	84	4.4-5.4	2.25
6	150	232	16	696	48	4.0	2.14
6	150	290	20	870	60	4.1-4.6	2.3
6	150	348	24	1044	72	5.3-6.3	3.15
6	150	435	30	1305	90	5.7-6.2	3.3
8	200	232	16	696	48	4.0-4.4	3.3
8	200	304.5	21	913.5	63	5.0-5.2	4.5
8	200	348	24	1044	72	5.2-5.8	4.6
8	200	406	28	1218	84	6.0-6.5	5.2
10	250	145	10	435	30	3.9	3.2
10	250	188.5	13	565.5	39	3.9-4.4	3.8
10	250	232	16	696	48	4.8-5.2	4.4
10	250	290	20	870	60	5.2	4.7
12	300	72.5	5	217.5	15	2.1-2.3	2.6
12	300	145	10	435	30	4.1-4.2	4.3
12	300	188.5	13	565.5	39	4.3-4.4	4.8
12	300	217.5	15	652.5	45	4.5-4.6	5.1
14	350	87	6	261	18	2.5	3.97
16	400	145	10	435	30	4.4	7
