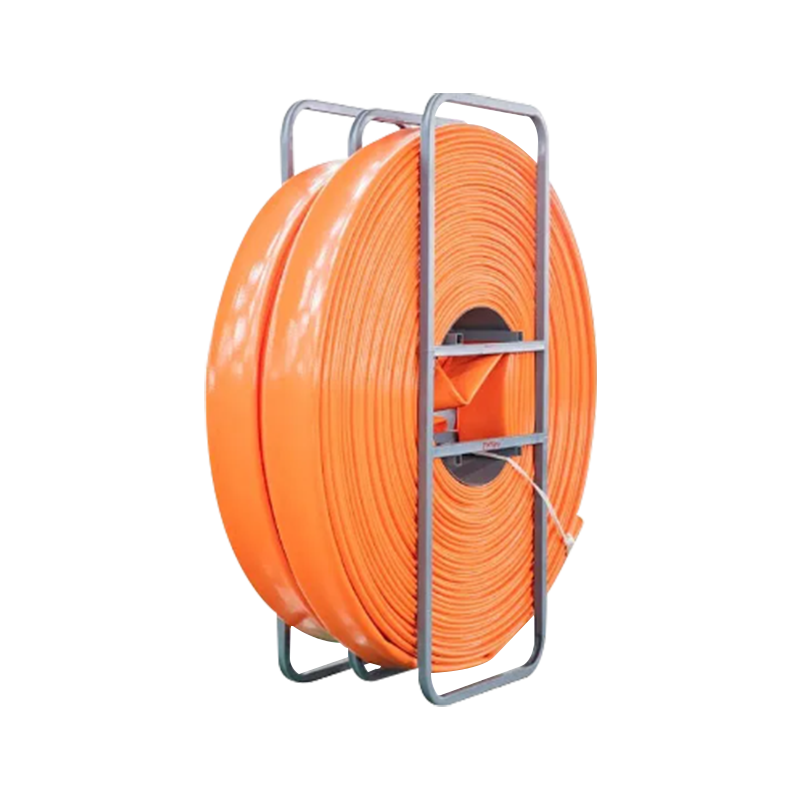

TPU Layflat Hose Manure Dray Hose

Through-the-weave TPU lay-flat hose

Features

• High-strength polyester filament as reinforcement, TPU as cover and lining, “through-the-weave ”process

•High tensile strength and high adhesive strength

•Resistant to abrasion, UV, oil, ozone, and weathering

•Temperature range:-40° F to 165° F (-40℃ ~ +74℃)

•Available in 100m,200m, or on customer request

•Standard color: Red, Orange, or on customer request

+ Contact us

PREV：No previous article NEXT：No next article

Details
Specification

The TPU lay flat hose manure Dray Hose is designed for high-performance liquid manure applications. The Thermoplastic Polyurethane (TPU) material ensures the hose can withstand significant pressure and stretching, making it suitable for heavy-duty agricultural use. The strong adhesion between the layers of the hose enhances durability and prevents delamination, ensuring long-term reliability. The hose is available in 100m, and 200m, or can be tailored to specific lengths based on customer requests, offering flexibility in different farming operations.

Our Products Related products

Inner Diameter		Working Pressure		Burst pressure		Wall Thickness	Weight
inch	mm	psi	bar	psi	bar	mm	Kg/m
3	80	232	16	696	48	3.1	0.78
4	100	190	13	560	39	3	1
5	125	190	13	560	39	3.3	1.7
6	150	150	10	435	30	3	1.8
8	200	150	10	435	30	3.5	2.5
